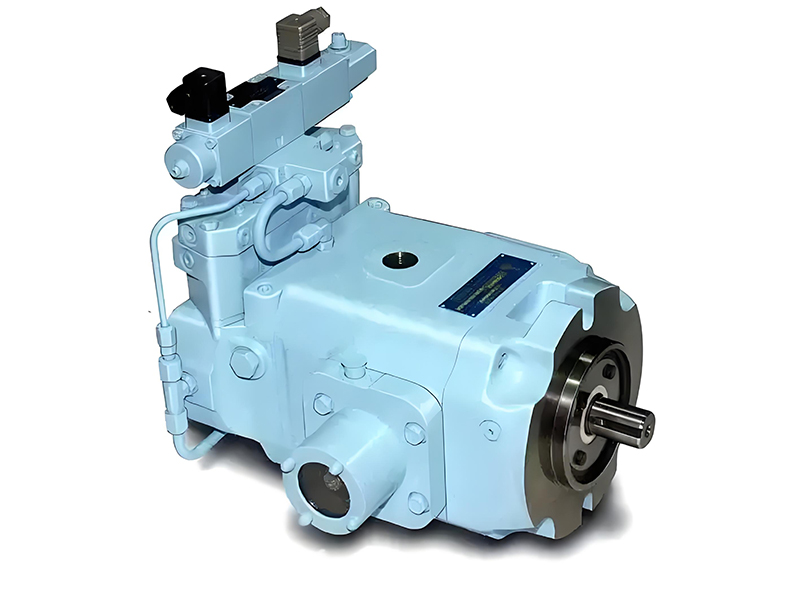

The hydraulic system is a cornerstone of modern industrial machinery, providing efficient power transmission through the use of pressurized fluid. This technical guide explores various aspects of hydraulic systems, from fundamental principles of reading and analyzing hydraulic schematics to detailed examinations of specific implementations in diverse industrial applications. Whether you're an engineer, technician, or student, understanding these systems is crucial for optimizing performance, troubleshooting issues, and ensuring safe operation of hydraulic equipment.
Each section below delves into a specific aspect of hydraulic technology, providing practical knowledge and insights that can be applied in real-world scenarios. From machine tools to heavy equipment, the hydraulic system remains a vital component in countless industrial operations worldwide.
Section 1: Methods for Reading and Analyzing Hydraulic System Diagrams
Understanding how to read and interpret hydraulic system diagrams is fundamental to working with hydraulic equipment. These diagrams use standardized symbols to represent components and their connections, providing a blueprint for the entire system's operation.
The first step in analyzing any hydraulic system diagram is to identify all major components: pumps, actuators, valves, reservoirs, and conductors. Each component has a specific symbol that indicates its function and characteristics. For example, directional control valves are represented by squares with arrows indicating flow paths, while hydraulic cylinders use circles or rectangles with piston symbols.
Once components are identified, trace the flow paths under different operating conditions. This involves following the hydraulic fluid from the reservoir through the pump, control valves, actuators, and back to the reservoir. Pay special attention to pressure ratings, flow directions, and control mechanisms indicated in the diagram.
Effective analysis of a hydraulic system diagram also involves understanding the sequence of operations. This includes identifying which actuators operate simultaneously and which operate sequentially, as well as the pressure and flow requirements for each phase of operation.
By mastering these diagram reading techniques, technicians and engineers can troubleshoot problems more efficiently, modify systems for improved performance, and ensure proper maintenance of the hydraulic system throughout its operational life.
Common Hydraulic System Symbols
Key Analysis Steps:
- Identify all components and their symbols
- Trace primary and secondary flow paths
- Determine pressure zones and relief points
- Analyze control sequences and logic
- Verify component sizing and compatibility
Section 2: YT4543 Hydraulic Power Slide Table Hydraulic System
The YT4543 hydraulic power slide table is a precision machine tool component that relies on a well-designed hydraulic system to achieve accurate linear motion. This system is particularly valued in manufacturing for its ability to provide smooth, controlled movement with adjustable speed and force.
At the heart of the YT4543's operation is a variable displacement pump that supplies hydraulic fluid to a double-acting cylinder responsible for moving the slide table. The hydraulic system incorporates directional control valves to manage extension and retraction, flow control valves to regulate speed, and pressure relief valves to protect components from overpressure conditions.
A key feature of this hydraulic system is its ability to provide rapid advance, working feed, and rapid retraction cycles. During rapid advance, the system uses both the rod and piston sides of the cylinder in a regenerative circuit to achieve high speed with lower flow requirements. When precision cutting begins, the system switches to a slower working feed rate with higher force output.
The YT4543 hydraulic system typically operates at pressures between 6-10 MPa, with flow rates varying based on the operational phase. Pressure-compensated flow control valves ensure consistent feed rates regardless of load variations, which is critical for maintaining machining accuracy.
Maintenance of this hydraulic system focuses on regular fluid analysis, filter replacement, and seal inspection to prevent leaks that could compromise precision. Proper hydraulic fluid selection is also crucial, as viscosity changes due to temperature variations can affect system performance.
YT4543 Hydraulic Power Slide Table System
System Performance Parameters:
- Operating Pressure: 6-10 MPa
- Rapid Traverse Speed: 7-10 m/min
- Working Feed Speed: 0.05-1.5 m/min
- Maximum Stroke: 400-630 mm
- Pump Flow Rate: 25-40 L/min
Section 3: MLS₃—170 Shearer and Its Hydraulic Traction System
The MLS₃—170 is a heavy-duty shearer used in coal mining operations, featuring a robust hydraulic system for its traction and cutting functions. The hydraulic traction system is particularly critical, providing the necessary power to move the shearer along the mining face while maintaining position against significant loads.
The traction hydraulic system utilizes a variable displacement axial piston pump driving two hydraulic motors connected to the shearer's行走机构. This closed-loop system allows for precise speed control and direction reversal without mechanical clutches, improving reliability in harsh mining environments.
A key advantage of this hydraulic system is its ability to provide constant power output across a range of speeds, automatically adjusting displacement to maintain torque as load conditions change. This is essential for maintaining productivity when cutting through varying coal seam conditions.
The MLS₃—170's hydraulic system incorporates several protective features, including pressure relief valves to prevent overload, filtration systems to maintain fluid cleanliness in dusty environments, and cooling systems to manage heat generated during continuous operation. The system operates at pressures up to 31.5 MPa, requiring high-quality hydraulic fluid and regular maintenance.
In addition to traction, the hydraulic system controls the shearer's cutting drum height and attitude, allowing for precise coal cutting and roof support. This integration of multiple functions into a single hydraulic system reduces complexity while improving operational efficiency in the challenging mining environment.
MLS₃—170 Shearer Hydraulic System
Hydraulic Traction System Performance Characteristics
Section 4: Hitachi EX400 Hydraulic Excavator Hydraulic System
The Hitachi EX400 is a large hydraulic excavator that relies on a sophisticated hydraulic system to power its boom, arm, bucket, and swing functions. This multi-circuit hydraulic system is designed to deliver high power while allowing simultaneous operation of multiple functions with precise control.
The EX400's hydraulic system features a load-sensing system that optimizes pump output based on actual demand, improving fuel efficiency while maintaining performance. Two variable displacement axial piston pumps supply hydraulic fluid to the various actuators through a complex network of control valves.
A key innovation in this hydraulic system is the negative flow control, which regulates pump displacement based on the return flow from control valves, ensuring efficient operation across different workloads. The system also incorporates regeneration circuits for the boom and arm cylinders, reducing pump flow requirements during certain movements.
Operating pressures in the EX400's hydraulic system can reach up to 34.3 MPa in the main circuits, with dedicated circuits for auxiliary functions operating at slightly lower pressures. The system includes comprehensive filtration and cooling to maintain fluid quality and temperature within optimal ranges during extended operation.
The hydraulic system is also equipped with advanced diagnostic capabilities, allowing technicians to monitor pressures, flows, and temperatures at various points to quickly identify issues. This, combined with robust component design, makes the EX400's hydraulic system highly reliable in demanding construction and mining applications.
Hitachi EX400 Hydraulic System
Main Hydraulic Components:
Variable Displacement Pumps (2)
320 L/min total flow
Main Control Valve
11 spool sections
Boom Cylinders (2)
180 mm bore
Arm/Bucket Cylinders
160-180 mm bore
Swing Motor
310 Nm torque
Travel Motors (2)
2 x 1200 Nm
Section 5: YB32—200 Press Hydraulic System
The YB32—200 is a 200-ton hydraulic press utilized in various manufacturing processes, featuring a high-pressure hydraulic system designed to deliver precise force application. This system is engineered for both speed and accuracy, making it suitable for operations such as stamping, forming, and assembly.
The heart of the YB32—200's operation is a large-diameter master cylinder powered by a dedicated hydraulic system that includes a high-pressure pump, pressure control valves, and a sophisticated control system. The system uses a two-stage pumping arrangement: a low-pressure, high-flow pump for rapid approach and a high-pressure, low-flow pump for the working stroke.
A critical feature of this hydraulic system is its pressure regulation capability, allowing operators to precisely set and maintain the desired pressing force. Pressure transducers provide feedback to a control system that adjusts pump output to maintain consistent pressure throughout the working cycle.
The YB32—200's hydraulic system operates at pressures up to 32 MPa during the working stroke, requiring robust components and careful maintenance. The system incorporates a large accumulator to provide additional flow during peak demand, reducing pump size requirements and improving energy efficiency.
Safety is paramount in this hydraulic system, with multiple pressure relief valves, emergency stop circuits, and overload protection mechanisms. The system also includes features for precise position control, allowing for repeatable pressing operations with tolerances as tight as ±0.1 mm.
Maintenance procedures for the YB32—200's hydraulic system focus on maintaining fluid cleanliness, checking for leaks in high-pressure lines, and calibrating pressure sensors regularly. Proper fluid conditioning is essential, as contaminants can cause premature wear in the precision components of this high-pressure hydraulic system.
YB32—200 Press Hydraulic System
Press Cycle and Hydraulic System Operation
Rapid Approach
Low pressure (3-5 MPa), high flow (120 L/min)
Contact and Pressurization
Transition to high pressure
Working Stroke
High pressure (up to 32 MPa), low flow
Pressure Holding
Maintained pressure with minimal flow
Return Stroke
Controlled retraction at medium pressure
Section 6: XS—ZY—250A Injection Molding Machine Hydraulic System
The XS—ZY—250A injection molding machine employs a complex hydraulic system to perform its multiple sequential operations, including clamping, injection, holding, cooling, and ejection. This system must deliver precise control over both pressure and flow across different stages of the molding cycle.
A key feature of this hydraulic system is its proportional control valves, which allow for precise adjustment of flow rates and pressures during different phases of the molding process. This level of control is essential for producing high-quality plastic parts with consistent dimensions and properties.
The clamping unit of the XS—ZY—250A relies on a large-diameter hydraulic cylinder powered by the hydraulic system to generate clamping forces up to 2500 kN. This system incorporates a pressure intensifier to achieve high clamping pressures without requiring excessively large pumps.
For the injection process, the hydraulic system drives a screw through a hydraulic motor, providing both rotational movement for plasticizing and axial movement for injection. The system can precisely control injection speed and pressure, with typical injection pressures ranging from 80 to 150 MPa.
Energy efficiency is a key consideration in this hydraulic system, which often incorporates variable speed pumps and accumulators to reduce energy consumption during the cooling phase when hydraulic demand is low. This not only reduces operating costs but also minimizes heat generation in the system.
The XS—ZY—250A's hydraulic system includes specialized circuits for each function, with check valves and sequence valves ensuring proper operation order. Advanced control systems synchronize the hydraulic functions with temperature controls and mold movements, creating an integrated system that can produce complex plastic parts with high repeatability.
XS—ZY—250A Injection Molding Hydraulics
Hydraulic System Performance by Cycle Phase
Clamping Force
2500 kN max
Injection Pressure
80-150 MPa
System Pressure
14-16 MPa
Oil Flow Rate
120 L/min max
Section 7: Disc Type Thermal Dispersion Machine - Proportional Pressure and Flow Compound Control Hydraulic System
Disc type thermal dispersion machines utilize an advanced hydraulic system with proportional pressure and flow control to process materials through controlled heating and mechanical dispersion. This specialized hydraulic system provides the precise control necessary for handling temperature-sensitive materials and achieving uniform dispersion quality.
The core of this system is its proportional control technology, which allows simultaneous and independent adjustment of both pressure and flow in the hydraulic system. This compound control capability enables the machine to maintain optimal processing conditions even as material properties change during the dispersion process.
The hydraulic system drives a pair of counter-rotating discs, controlling both their rotational speed (through flow control) and the pressure between them (through pressure control). This dual control allows operators to fine-tune the dispersion process for different materials and desired outcomes.
A key advantage of this proportional control hydraulic system is its dynamic response to changing process conditions. Sensors throughout the machine provide real-time feedback on torque, temperature, and material flow, allowing the hydraulic system to make immediate adjustments to maintain optimal processing parameters.
The system operates at moderate pressures (typically 10-16 MPa) but requires extremely precise control, with pressure and flow adjustments achievable in milliseconds. This level of precision is made possible by the use of servo-proportional valves and a high-performance electronic control system.
Energy efficiency is another hallmark of this hydraulic system, as the proportional control allows for precise matching of power output to actual process requirements. This not only reduces energy consumption but also minimizes heat generation, which is particularly important in thermal dispersion applications where temperature control is critical.
Proportional Control Hydraulic System
Proportional Control System Components
Proportional Pressure/Flow Valves
Provide simultaneous, independent control of pressure and flow
Pressure Transducers
Provide real-time pressure feedback with 0.1% accuracy
Flow Sensors
Monitor hydraulic fluid flow rates with high precision
PLC Control System
Processes sensor data and adjusts valves accordingly
HMI Interface
Allows operators to program and monitor process parameters
Section 8: XLB1800×10000 Type Plate Hydraulic System
The XLB1800×10000 is a large plate hydraulic press used primarily in the manufacturing of composite materials and rubber products. Its hydraulic system is designed to deliver uniform pressure across a large surface area (1800×10000 mm), making it suitable for large-scale lamination and molding operations.
The hydraulic system of the XLB1800×10000 features multiple hydraulic cylinders strategically positioned to ensure even pressure distribution across the entire plate area. This system typically includes 8-12 synchronized cylinders that work in unison to prevent uneven loading and material defects.
A key challenge in this hydraulic system is maintaining pressure uniformity across such a large surface. To address this, the system incorporates a sophisticated pressure compensation network that adjusts flow to individual cylinders based on feedback from pressure transducers located throughout the platen.
The hydraulic system operates at pressures up to 25 MPa, generating a total clamping force of several thousand tons. Given the large volume of hydraulic fluid required, the system uses multiple high-capacity pumps working in parallel, with flow rates exceeding 500 L/min during rapid approach phases.
Energy efficiency is addressed through the use of a variable frequency drive on the main pump motor and large accumulators to handle peak flow demands. This not only reduces energy consumption but also minimizes heat generation in the hydraulic system, which is crucial given the machine's large size and extended operating cycles.
The XLB1800×10000's hydraulic system also includes precise position control mechanisms, allowing for accurate platen positioning with tolerances of ±0.5 mm. This level of precision, combined with uniform pressure distribution, ensures consistent product quality across the entire large-format plates processed by the machine.
XLB1800×10000 Plate Hydraulic System
System Specifications & Features
| Parameter | Specification |
|---|---|
| Plate Dimensions | 1800 × 10000 mm |
| Total Clamping Force | 5000-8000 kN |
| Number of Cylinders | 8-12 |
| Operating Pressure | Up to 25 MPa |
| Max Flow Rate | 500+ L/min |
| Positioning Accuracy | ±0.5 mm |
| Pressure Uniformity | ±2% |
Section 9: Floating Hydraulic Wave Energy Converter with Variable Damping Hydraulic System
The floating hydraulic wave energy converter represents an innovative application of hydraulic system technology for renewable energy generation. This system converts the irregular motion of ocean waves into electrical energy through a specialized hydraulic power take-off system with variable damping capabilities.
At the heart of this technology is a hydraulic system that captures the oscillating motion of the floating device. As waves move the float, hydraulic cylinders are extended and retracted, pumping fluid through a network of valves and accumulators. This system must efficiently handle the highly variable and irregular input from wave motion.
A critical feature of this hydraulic system is its variable damping capability, which allows it to optimize energy capture across different wave conditions. By adjusting the hydraulic resistance (damping) in real-time, the system can maintain resonance with varying wave frequencies, maximizing energy extraction efficiency.
The hydraulic system incorporates accumulators to smooth out the intermittent energy input from wave motion, providing a more consistent flow to a hydraulic motor connected to an electrical generator. This energy storage capability is essential for converting the irregular wave energy into a stable electrical output.
Operating in the harsh marine environment presents unique challenges for this hydraulic system, including corrosion resistance, waterproofing, and reliability under extreme conditions. Specialized hydraulic fluids with enhanced lubricity and corrosion protection are used, along with robust sealing systems to prevent contamination.
Advanced control systems continuously monitor wave conditions and adjust the hydraulic system parameters to maximize efficiency. This includes varying the damping coefficient, adjusting accumulator pre-charge pressures, and optimizing flow rates through proportional control valves. These adaptations allow the system to maintain high efficiency across the wide range of wave conditions encountered in marine environments.
Wave Energy Converter Hydraulic System
Hydraulic System Energy Conversion Process
Wave Capture
Float movement drives hydraulic cylinders via wave motion
Fluid Power Conversion
Cylinders pump hydraulic fluid through check valves
Energy Storage
Accumulators store energy and smooth output
Variable Damping Control
Proportional valves adjust system resistance for optimal efficiency
Electricity Generation
Hydraulic motor drives electrical generator
Section 10: Jiaolong Deep-Sea Submersible Hydraulic System
The Jiaolong deep-sea submersible relies on a highly specialized hydraulic system to operate its manipulators, thrusters, and sampling equipment at extreme depths reaching 7000 meters. This hydraulic system must function reliably under immense pressure (up to 70 MPa) while withstanding extreme cold and maintaining precise control.
A defining feature of this hydraulic system is its ability to operate in a high-external-pressure environment. Unlike conventional hydraulic systems that must contain internal pressure, the Jiaolong's system must resist external water pressure that increases with depth, requiring specially designed components and sealing systems.
The hydraulic system powers two multi-axis manipulators that allow the submersible to collect samples and perform tasks on the seafloor. These manipulators require precise control with fine movement capabilities, achieved through servo-valves and feedback sensors that provide position and force control.
Given the remote and harsh operating environment, the hydraulic system must be extremely reliable with built-in redundancy. Critical components like pumps and control valves have backup systems, and the hydraulic system includes comprehensive monitoring to detect leaks or performance degradation before they become critical.
Hydraulic fluid selection is particularly important in this application, with specialized fluids that maintain viscosity at low temperatures (-1 to 4°C) and resist compression under high pressure. The fluid must also provide excellent lubrication to prevent wear in components that cannot be easily serviced during missions.
The Jiaolong's hydraulic system is designed for minimal maintenance and maximum operational efficiency, with self-contained power units that can operate for extended periods without intervention. The system's compact design is also critical, as space is extremely limited within the submersible's pressure hull.
Perhaps most impressively, the hydraulic system provides precise control capabilities even in the challenging deep-sea environment, allowing operators to perform delicate tasks like collecting biological samples or manipulating scientific equipment with millimeter-level accuracy despite the extreme conditions.
Jiaolong Submersible Hydraulic System
Extreme Environment Hydraulic System Features
Key System Requirements:
- Operation at depths up to 7000 meters
- Resistance to external pressure of 70 MPa
- Functionality at temperatures of 1-4°C
- Precision control for manipulator operations
- Redundant components for reliability
- Compact design for limited space
- Long-term operation without maintenance
Conclusion: The Versatility of the Hydraulic System
As demonstrated through these diverse applications, the hydraulic system remains an essential technology across numerous industries, from manufacturing and mining to renewable energy and deep-sea exploration. Its ability to transmit high power with precise control makes it indispensable in applications requiring both strength and finesse.
Advancements in hydraulic system technology, including proportional control, energy efficiency improvements, and specialized designs for extreme environments, continue to expand the capabilities and applications of hydraulic power. As industries evolve, the hydraulic system will undoubtedly remain a cornerstone of modern engineering, adapting to meet new challenges and opportunities.
